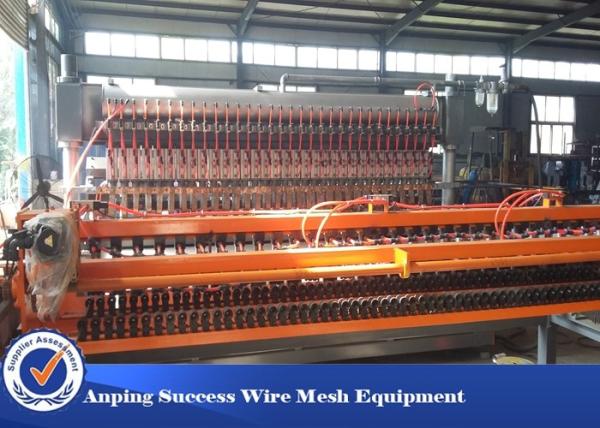

Customized Wire Mesh Making Machine With PLC Digital Programming System

Brand Name : JG
Model Number : JG-03
Certification : ISO9001
Place of Origin : CHINA
MOQ : 1 set
Payment Terms : L/C, T/T
Supply Ability : 50 sets/month
Delivery Time : 15 work days
Packaging Details : 20'
Net width : 2050
Soldering ability : 12+12
Working speed : 60
Rated power : 400-2000
Host size : 4*3.4*2.6
Weight : 8
Contact Now

Pneumatic Reinforcing Mesh Welding Machine / Wire Mesh Welding / 2050MM Width


The working process


1. Feeding: Cross wire & Line wire are both pre-cut wires. Cross wires are feeded to the mould manually then the wire falling autoamticlly, while line wires are automatically feeded by the servo motor.


2. Welding: The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a PLC digital programming system, and the pore size can be adjusted only by direct input on a touch screen control panel; welding power is pneumatic, and welding pressure can be easily and intuitively adjusted.

3. Welding finish: The servo motor controls an automatic mesh drawing process until the whole mesh is welded, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.


Technical parameters


Wire diameter5mm-12mmWarp feedingPre-cut
Weft distanceMin. 50mmWeft feedingPre-cut
Warp distance100mm-300mmPower supplyAC380V-440V
Warp quantity26Welding width2500mm
Mesh length12mWelding speed45 times/min
Dimensions10*3.4*1.8(m)Welding capacity12mm+12mm

.


Accessories


1. air tank

2. air compressor

3. wire straighting and cutting machine

4. bobbin
